Movcam Standard Kit for Sony FX9 (V-Mount) #303-3910


Categories: SKU: MOV#303-3910

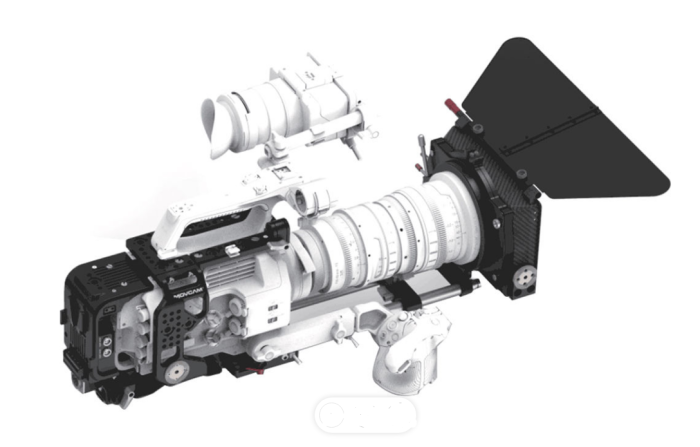

The V-mount Standard Kit for Sony FX9 from Movcam is the same as the Base Kit but additionally includes a matte box, 15mm rods, and a rod mount lens support for long lenses.

The Standard Kit consists of several components that combine into a comprehensive rig for the Sony FX9. It features a shoulder-mount baseplate, 12″ rods, and a matte box and lens support that attach to the rods. It also includes a power distribution box that lets you power the camera via an optional V-mount battery or a 4-pin XLR input. The kit is complete with a top plate, side bracket, and 9″ dovetail plate.

The baseplate features a small VCT-14 adapter plate that supports optional VCT-14 plates. When the compact VCT-14 adapter is removed, the baseplate can be attached directly to the included dovetail plate. The distribution box also provides D-Tap and 2-pin LEMO connectors for accessories.

A removable rosette mount is provided on the baseplate, and a second rosette is available on the side bracket for attaching the Sony stock handle closer to the rear of the rig.

Movcam Baseplate for Sony FX9 with Shoulder Pad and VCT-14 Adapter
The Movcam Baseplate for Sony FX9 features an integrated no-play rubber shoulder pad and front and rear 15mm LWS rod support. An included VCT-14 adapter plate attaches to the bottom front to support optional VCT-14 plates, which secure to a hook on the rear rod bracket. When the compact VCT-14 adapter is removed, the baseplate can be attached directly to optional dovetail plates, such as the Movcam Universal Dovetail Plate, for compatibility with ARRI BP-8 bridge plates. A rosette mount for handgrips is provided on the left side and a 1/4″-20 lens screw on the front.

Movcam Distributor Box for Sony FX9 (V-Mount)
The V-mount Distributor Box for Sony FX9 from Movcam features both a Gold mount plate and a 4-pin XLR port for powering the camera. Either can be used, as you find most appropriate. Attaching to the back of the camera, the Distributor Box delivers 19.5V to the camera. The XLR port delivers 19.5V directly. When using a Gold mount battery, the battery’s output is converted to 19.5V.

The V-mount Distributor Box features two 12V D-Tap ports, two 14.4V 2-pin LEMO ports, and the above-mentioned 4-pin XLR DC input, which is on the bottom rear of the unit, right under the battery plate.

Movcam Side Bracket for Sony PXW-FX9
Add a side plate to your Sony PXW-FX9 camera for mounting accessories with this Side Bracket from MOVCAM. The plate mounts directly onto the camera using the included captive screws, and it wraps around the side and the top.

It features multiple 1/4″-20 and 3/8″-16 ARRI-style anti-twist accessory mounts to add a variety of accessories such as extension arms, a top handle, a monitor mount, a microphone, or a light. There is also an ARRI-style rosette on the side to add a rosette accessory or relocate the original FX9 handgrip toward the rear of the camera.

Sony PXW-FX9 camera

Also compatible with but not limited to:
MOVCAM 303-3901 baseplate
Movcam FX9 Top Plate
The Movcam FX9 Top Plate mounts onto the top of your Sony FX9 camera and works with your camera’s top handle. The Top Plate features numerous 1/4″-20 and 3/8″-16 threaded accessory mounting holes. The 3/8″-16 threaded mounting holes feature ARRI-compatible anti-twist divots, so you can use ARRI anti-twist compatible accessories, as well as standard 1/4″-20 or 3/8″-16 threaded accessories. An integrated 15mm rod clamp enables mounting 15mm rods to the top of your camera, above the the lens port for mounting accessories such as an optional EVF, monitor, or lens accessories.

Captive mounting screws simplify attaching and removing the plate as you need, withough worrying about misplacing the mounting screws. In addition to the accessory mounting holes, the plate is also machined to accept the clamp that secures the LCD viewfinder monitor cable. The plate is drilled and tapped to accept your camera’s sensor plane marking pin, for accurately measuring by tape.

Mounts onto the FX9 without interfering with the camera’s top handle
Provides mounting holes for the viewfinder cable clamp
Multiple 3/8″-16 and 1/4″-20 threaded accessory mounting holes
Includes mounting point for your camera’s film plane marking pin
Movcam MM4 4 x 5.65″ Clip-On/15mm LWS Rod-Mounted Matte box
The Movcam MM4 4 x 5.65″ Clip-On/15mm LWS Rod-Mounted Matte Box can be used as a clip-on matte box useable with lenses that feature a non-rotating front and a maximum outer diameter of 130mm. If the front of your lens rotates while focusing or zooming, you can use the matte box by mounting it to 15mm rods. It features 2 non-rotating filter stages that accommodate filters up to 4 x 5.65″ in size.

The matte box hood is constructed from carbon fiber so it is both lightweight and strong. Two ARRI-compatible rosettes, one on each side of the hood, allow you to connect accessories including handgrips. Incorporating a lockable top flag (eyebrow) hinge that allows you to precisely set the included top flag to cut flare and glare without intruding into the frame, this matte box helps provide protection to your image from stray light.

Clips onto lenses with non-rotating fronts with a front outer diameter up to 130mm.
15mm LWS rod clamps allow you to use the matte box on an optional rod support rig. This is useful when working with lenses that feature a rotating front.
The built-in hinge allows you to mount the included top flag to the matte box. The hinge is lockable for precise control, and the top flag folds in half to save space during storage.
Movcam 15mm Aluminum Rod – 12″ Long
The 15mm Aluminum Rod – 12″ (304.8mm) Long from Movcam is a single rod made of aluminum and is 12″ (304.8mm) in length.

Movcam Universal LWS Dovetail Plate
The Movcam Universal LWS Dovetail Plate is a baseplate compatible with Arri BP8 and Arri BP9 Bridgeplates.


重量 4.2 公斤
尺寸 50 × 34 × 27 厘米
